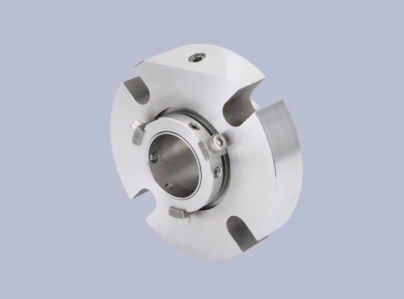

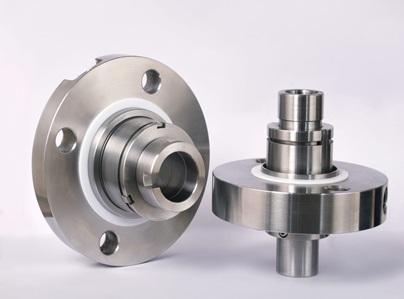

CARTRIDGE SEAL

Description

A cartridge mechanical seal is a completely enclosed sealing system with preassembled components. Typically, this seal type is composed of a gland, sleeve, and other hardware.

Materials of Construction

Seal Faces: Carbon, Sic, TC facings

Elastomers: Viton, Perflouro, Aflas, EPDM

Hardware: SS 316, SS 304

Operating Parameters Size Rage: 20 mm to 150 mm

Pressure Limits: Below 60 bar

Temperature Limits: -20’c to 200’c

Features

• User-friendly Installation: Simple setup process that requires no specialist expertise
• Universal Shaft Compatibility: Internal shaft sleeve eliminates the need for custom-made shafts in balanced seal applications
• Extended Operational Lifespan: Carefully selected components ensure long-term reliability and performance
• Standardization Solution: Ideal seal for streamlining inventory and maintenance processes
• Protected Spring Mechanism: Spring isolated from working fluids for enhanced durability
• Wide-ranging Applicability: Suitable for packing conversions, retrofits, or OEM
